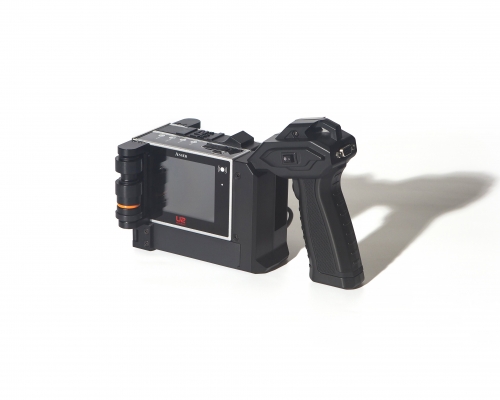

| U2 Mobiles Specifications | |
| Display |
3.5″ color LCD with LED backlight
|
| User Interface | Simple and easy-to-use operating system |
| Input Device | Pocket-sized IR remote keypad |
| Available Languages | English, Chinese (Traditional), Chinese (Simplified), Japanese, Russian, Korean, German, Portuguese, Spanish, French, Italian, Turkish, Hungarian, Slovak, Czech, Swedish, Romanian, Serbian, Bulgarian, Polish |
| Print Engine | HP Thermal Ink-Jet Technology |
| Print Resolution | Max 300*400 dpi |
| Print Distance | Max 1663.7 mm |
| Message High | Alphanumeric, logos, date/time, shift code, counter, lot box code |
| Print Capability | Up to 4 lines and 12.7mm (0.5″) |
| Barcodes | selectable front size from 2.7mm to 12.7mm |
| EANS, EAN13, EAN14, EAN128, UPCA, UPCE, CODE39, CODE128, | |
| TF14 (SCC-14), NVE18 (SSCC-18), C25INTER, CODABAR, PDF417, DATAMATRIX, QR Code and 2D barcode | |
| Data Interface | USB2.0*1, RS-485*1 |
| Dimensions | 143.5 (L) x 219 (W) x 143 (H) mm |
| Weight | 1.13 kg (2.49 lbs) |
| Long-Lasting Battery | |
| Rated Capacity | 1,840 mAh |
| Standard Voltage | 11.1V |
| Input/Output Voltage | 12.6V |
| Charging Voltage | 12.6V |
| Charging Temperature Range | 0° C – 45° C (32° F – 113° F) |
| Discharging Temperature Range | -20° C – 60° C (-4 °F – 140° F) |
| Dimensions | 100.3 (L) x 56.3 (W) x 21 (H) mm |
| Weight | 150g (0.33 lbs) |
| Cycle Life | More than 300 cycles |
| Ink Solution | A wide range of ink selections for printing on porous, semi-porous and |
| non-porous substrates | |
| Environment | 5″C – 40″C (41 ° F – 104° F) |
| Operation Temperature Range Storage Temperature Range | -2o·c – 70°C (-4° F – 158° F) |
| Display | 3.5” LCD with LED backlight |
|---|---|
| User Interface | Simple and easy-to-use operating system |
| Input Device | Pocket-sized IR remote keypad |
| LED Indicators | Pocket-sized IR remote keypad |
| Max Print Height | 1663.7mm |
| Max Print Distance | 6mm (0.25 inch) |
| Mounting Orientation | Downside, Horizontal |
| Conveyor Speed | 76 meter/min |
| Operating Temperature | 5℃-40℃ (41℉-104℉) |
| Data Interface | USB2.0*1, RS-485*1 |
| Print Capability | Alphanumeric, Barcode, Batchcode, Date / Time (Auto), Expire Date (Auto calculated), Logo (bitmap), Product Counter, Shift |
| Print Color | Black |
| Cartridge | S2 |
| Printable Lines | Up to 4 line and 12.7mm (0.5″) |
| Features | 4-in-1 Compact Design (controller, screen, print head, cartridge), AntiShock Mechanism for printhead protection, AUX I/O port (external encoder wheel, external photocell, alarm kit), Built-In Photocell, no additional cost, Cartridge shutter, Complete stand-alone (no PC required), Hot-swap: Circuit safeguard for quick cartridge changeover, LOG report for security check, Multi-Level password protection, Setup wizard, Software upgrade / Data backup |
