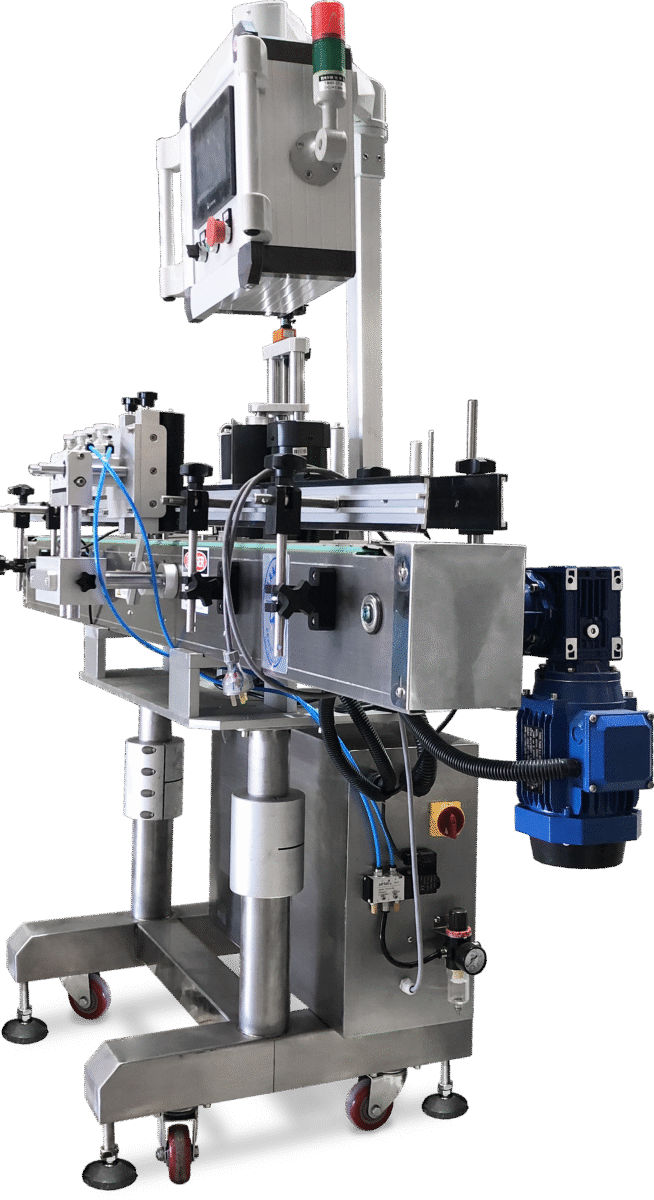

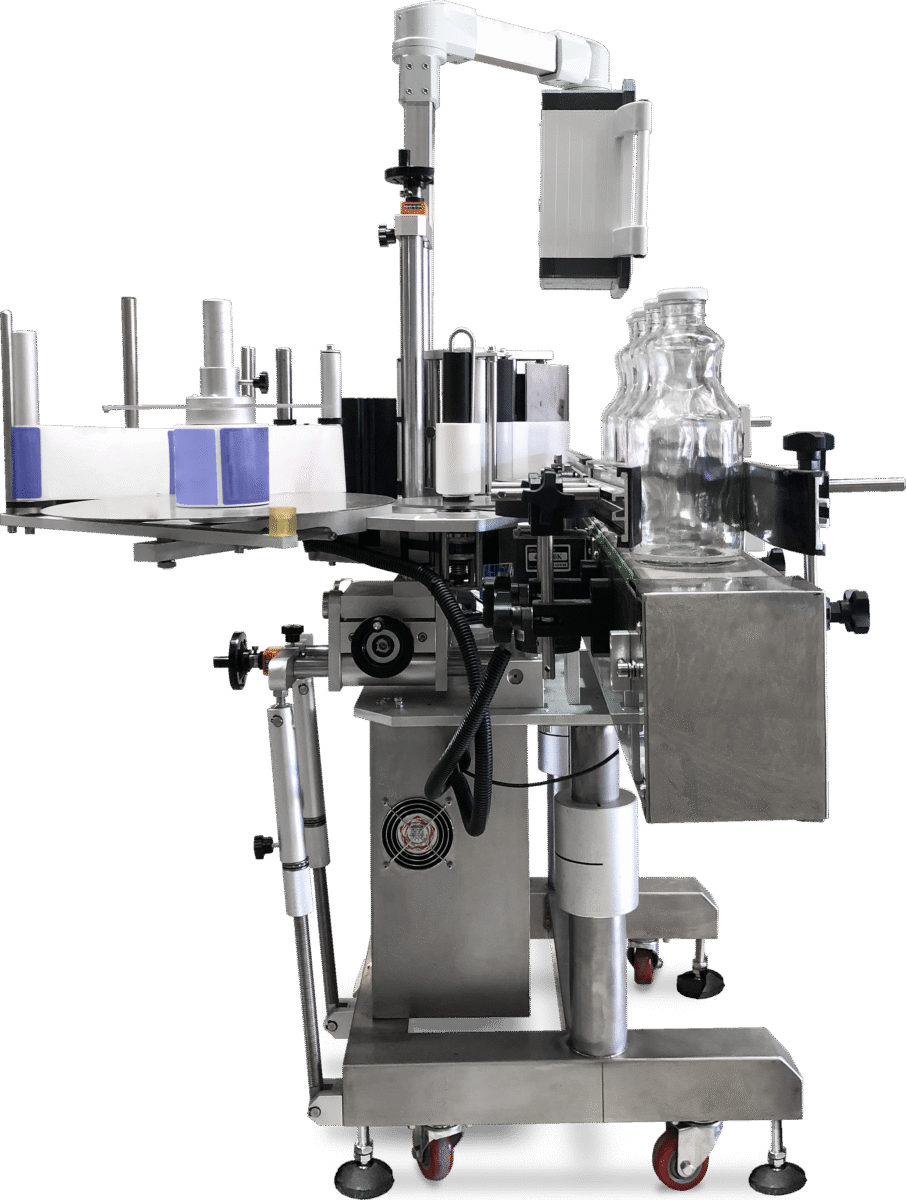

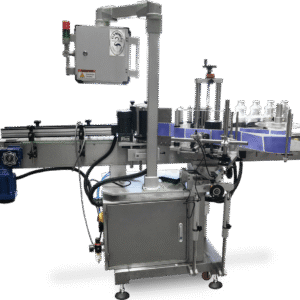

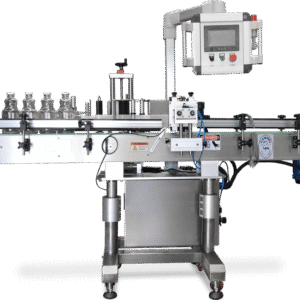

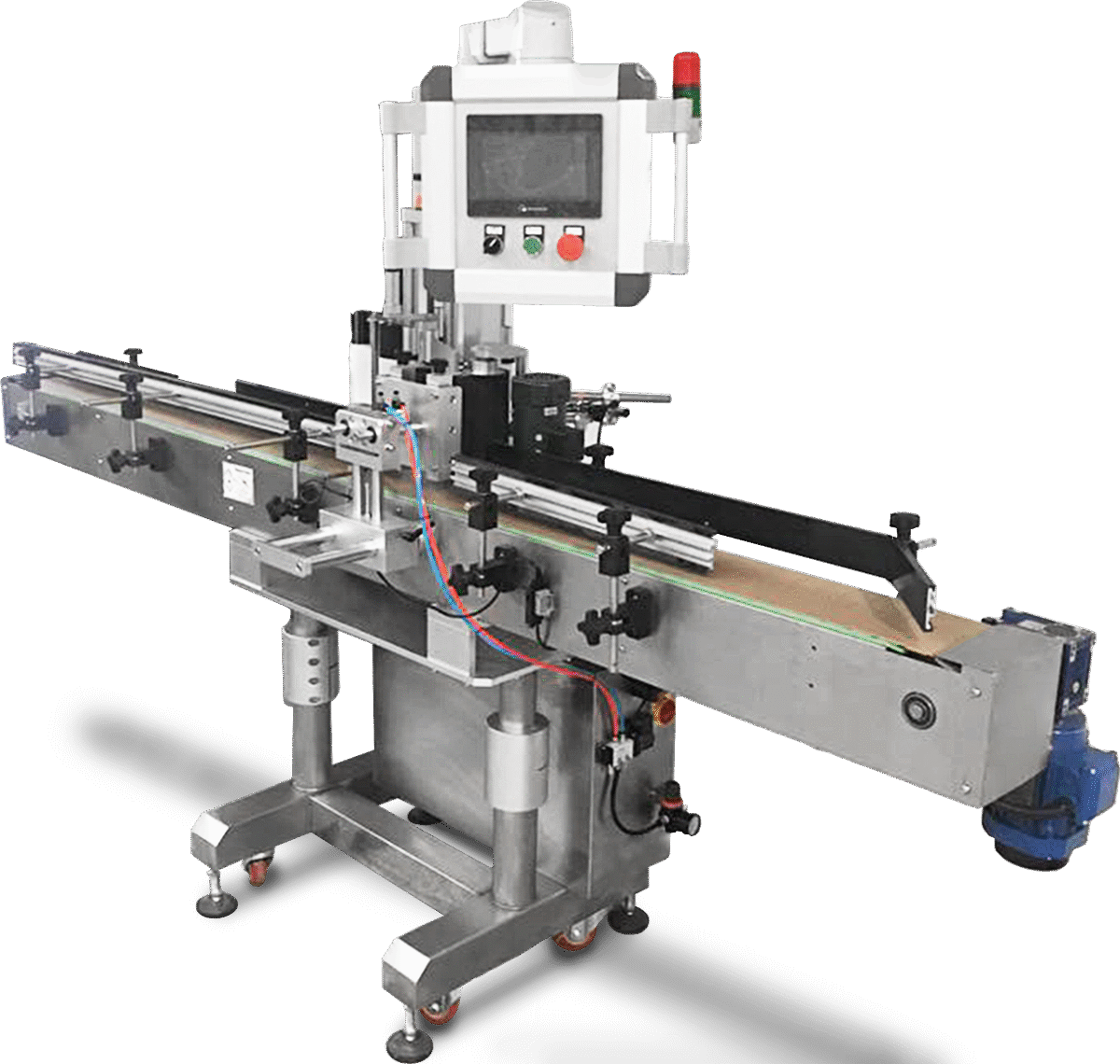

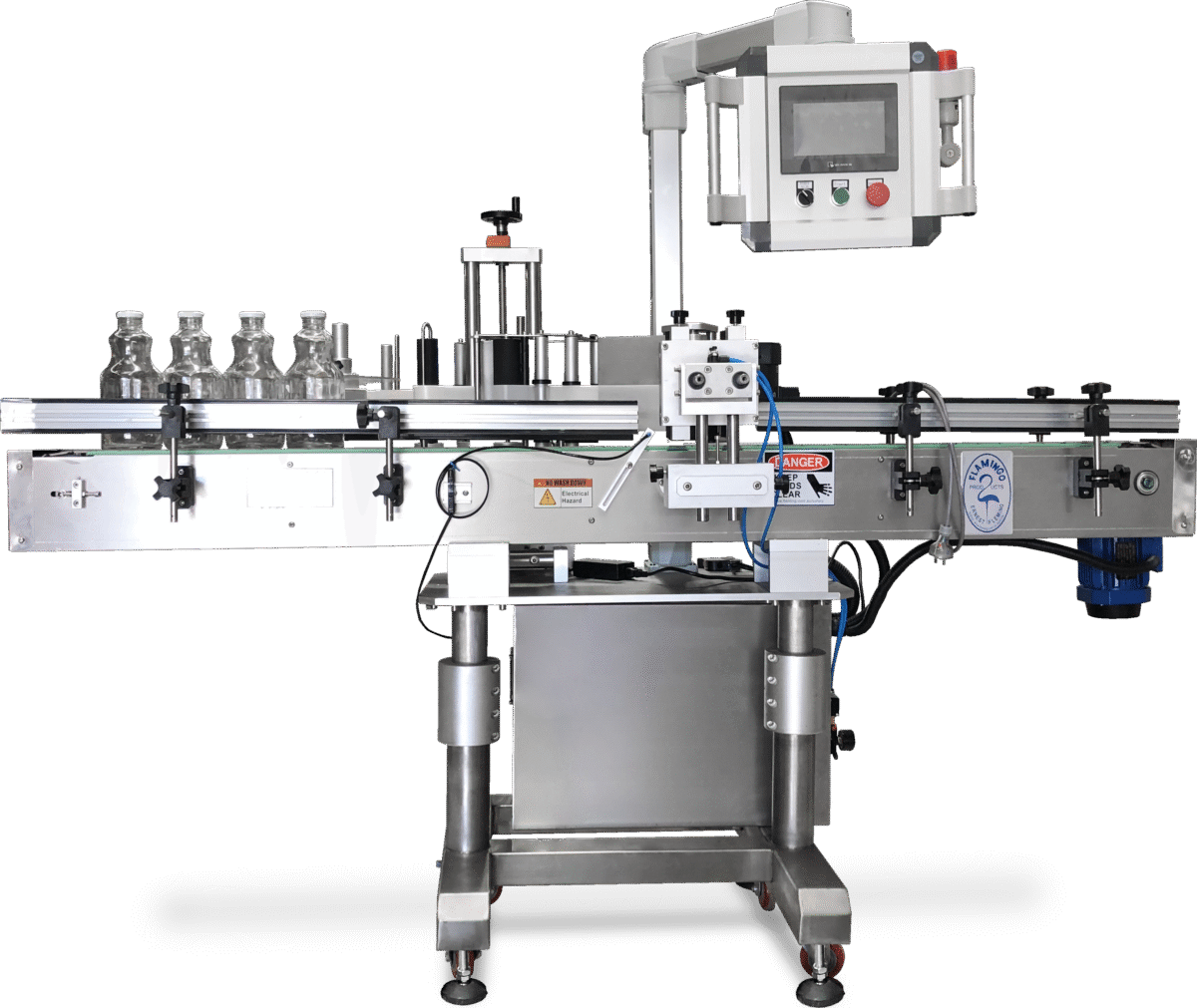

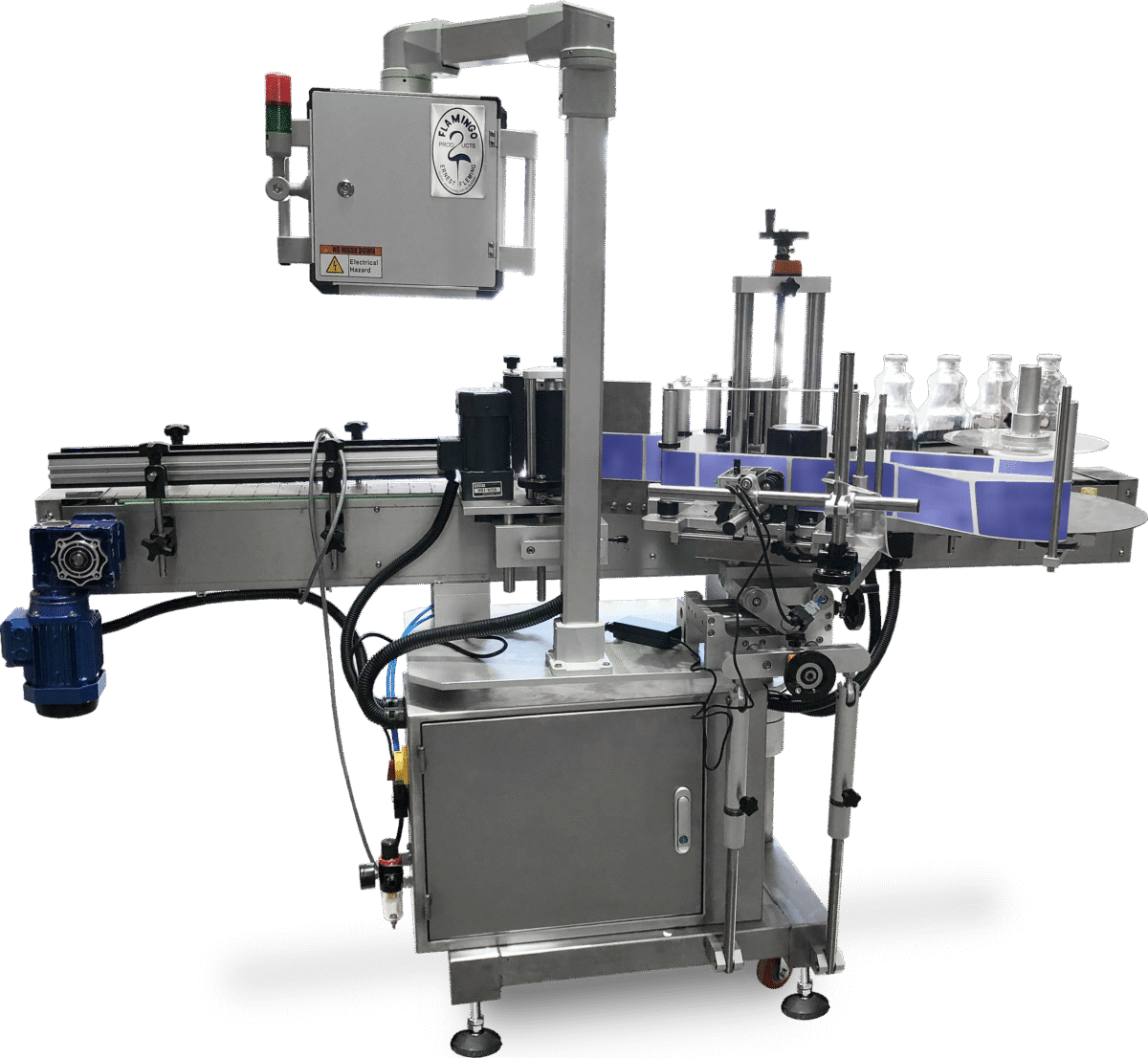

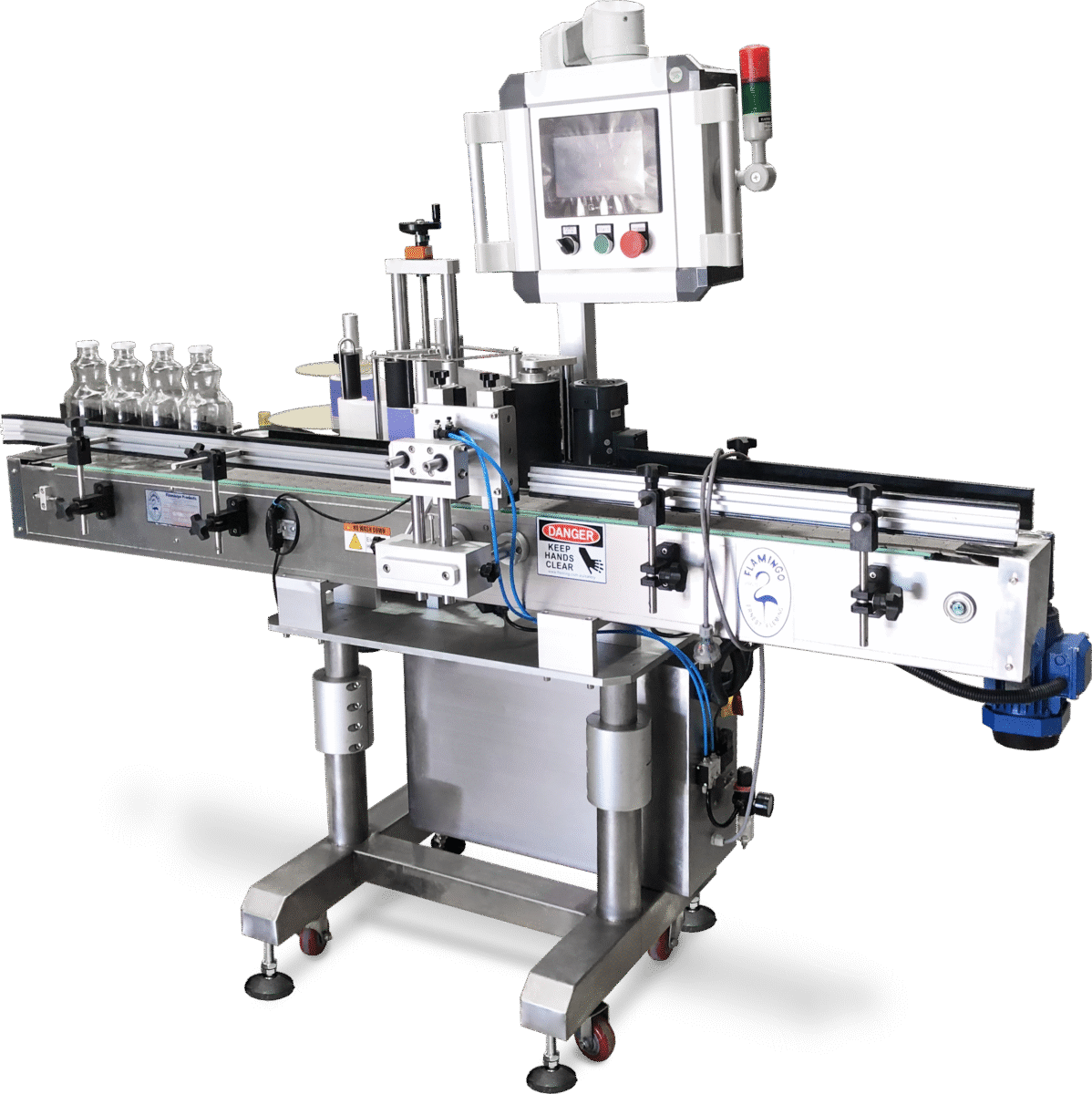

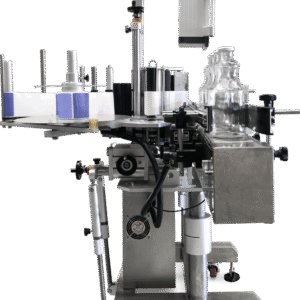

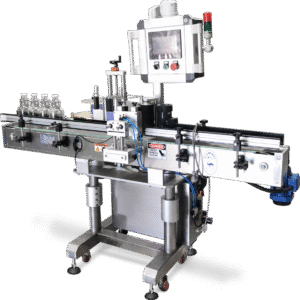

lamingo IJP-A550 Automatic Wrap-Around Clamp Type Labeller
For Long Labels or Dual Front/Back Labelling on Round Bottles – Customizable to Order

The Flamingo IJP-A550 is a high-performance, fully automatic clamp-type labelling system designed for wrap-around label applications, particularly suited for long labels. Its precision engineering also enables it to apply two separate labels (front and back) on round bottles in a single pass, making it a versatile solution for a wide variety of labelling applications.

With its servo-motor-driven label head, clamp-stabilised application, and adjustable guide rails, this labeller delivers consistent and professional results. It can be seamlessly integrated into existing production lines or operated as a stand-alone unit.

✅ Key Features & Benefits:

Wrap-Around & Dual-Label Capability
Applies a single wrap-around label or two partial labels (front and back) to cylindrical containers with precision.
Servo-Driven Accuracy
Servo motor ensures accurate label positioning for high-speed, high-volume environments.
Long Label Application
Designed specifically for applying long-format labels with smooth and precise alignment.
User-Friendly Operation
Touchscreen HMI with memory for 5–10 pre-saved programs, adjustable for different container and label sizes.
Advanced Sensors
Dual KEYENCE optical sensors detect transparent, opaque, or printed labels.
Reliable Control System
Features Mitsubishi PLC and Kinco stepper motor/drive for smooth and dependable operation.
Flexible Integration
Comes standard with a 2.4m speed-adjustable conveyor and adjustable side guides.
Durable Build
Constructed with stainless steel and anodised aluminium for long-term performance and easy cleaning.

🔧 Technical Specifications:

Parameter	Value
Production Speed	10–30 bottles/min (depending on application)
Input Voltage	240V, 50–60Hz
Label Dimensions	Height: 15–200mm, Length: 10–200mm (+)
Label Types	Transparent clear, paper plain
Label Application	Wrap-around or 2 partial labels
Program Memory	5–10 programmable settings
Machine Dimensions (mm)	2000 (L) x 1200 (W) x 1800 (H)
Weight	160kg
Air Supply Required	6–8 bar

🧪 Typical Applications:

Round bottles requiring dual branding or regulatory labelling
Long label designs for product storytelling or regulatory compliance
Cosmetic, beverage, nutraceutical, chemical, and personal care products

🔧 Customisation:

Custom-made options available to suit specialised applications. Contact us to tailor this labeller to your product dimensions and production line needs.
