Labelling IJP-A600

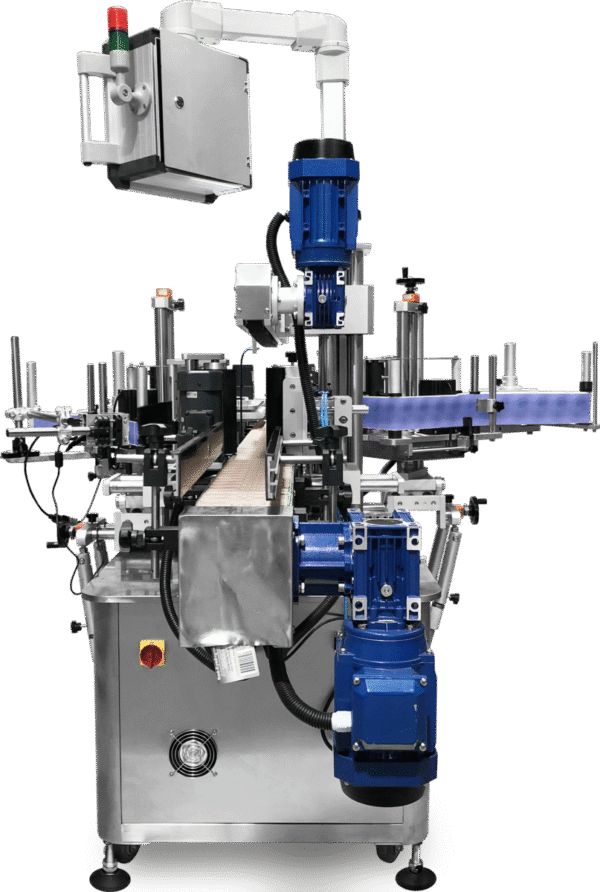

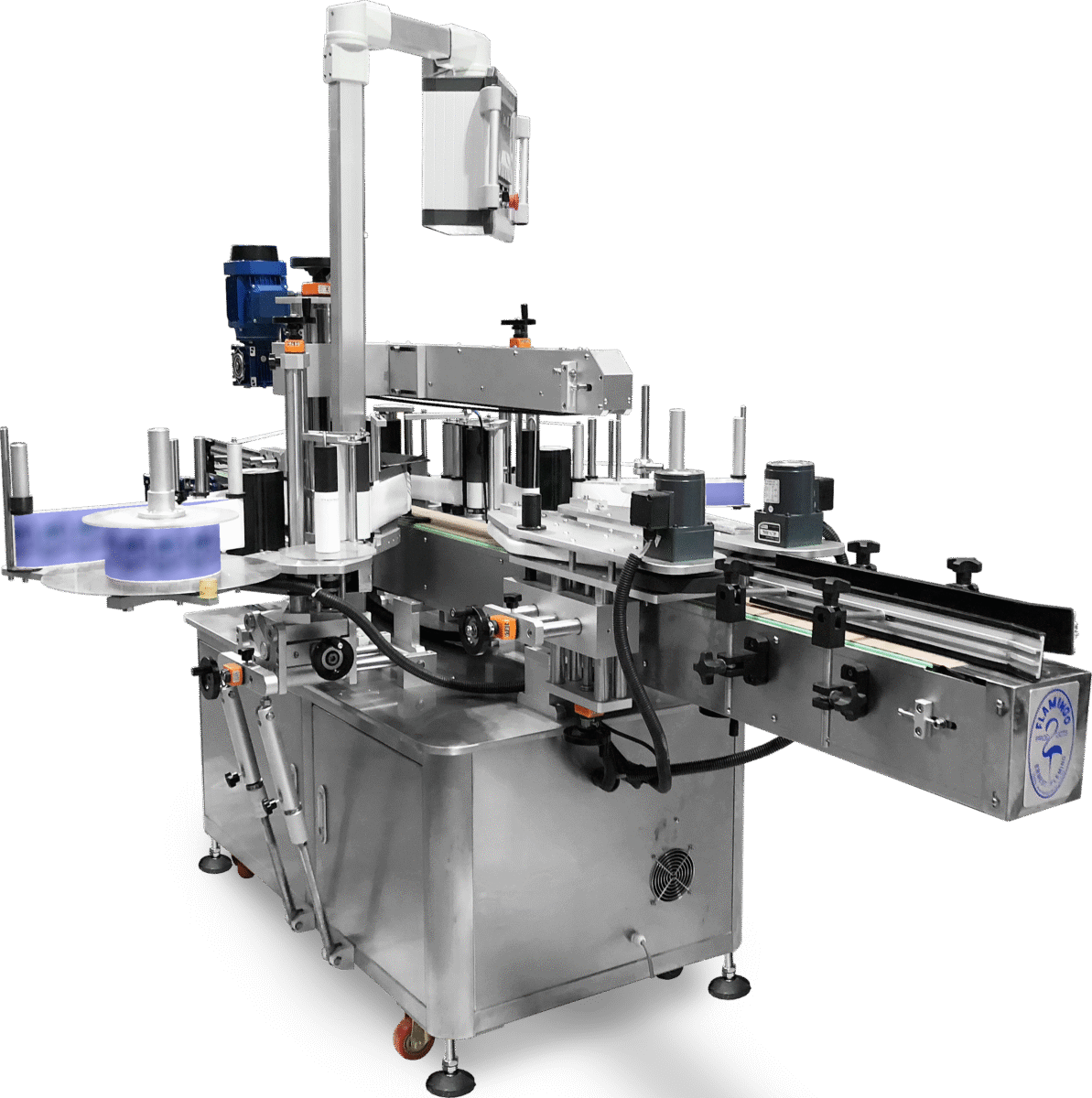

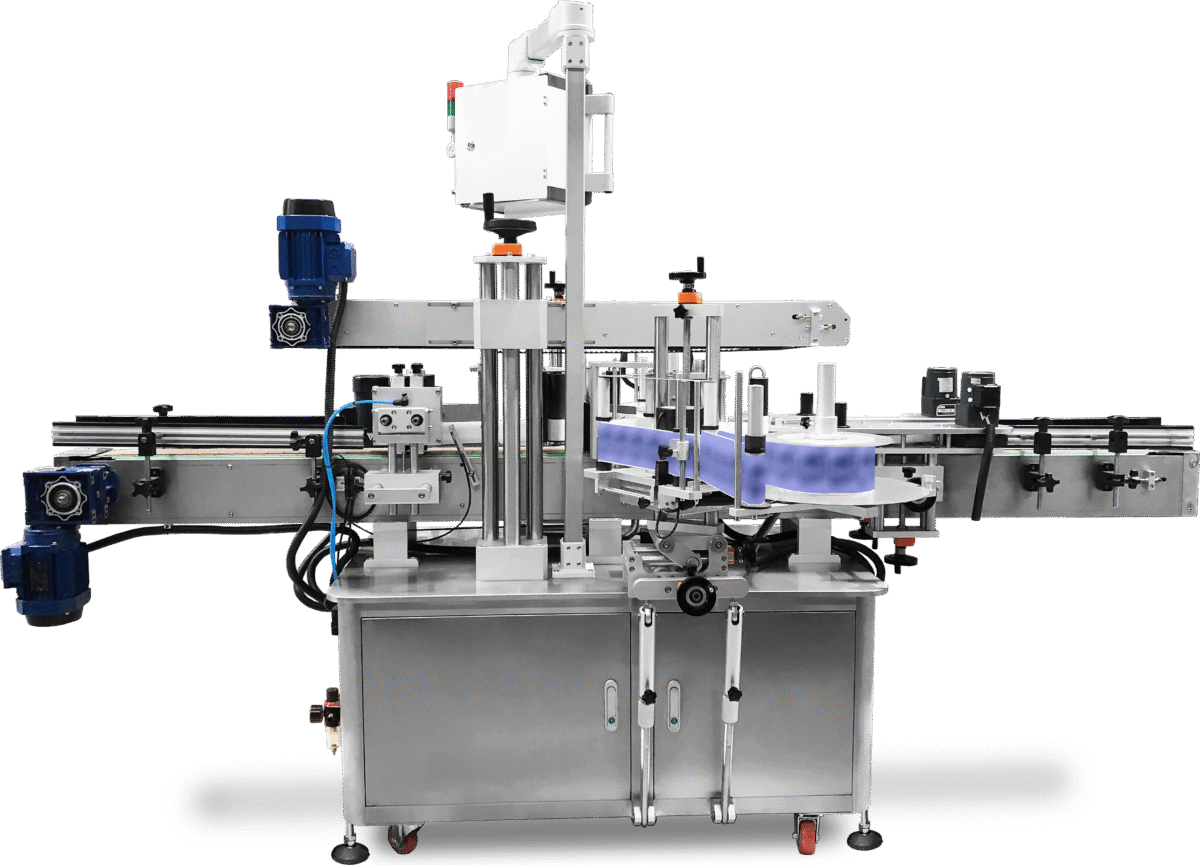

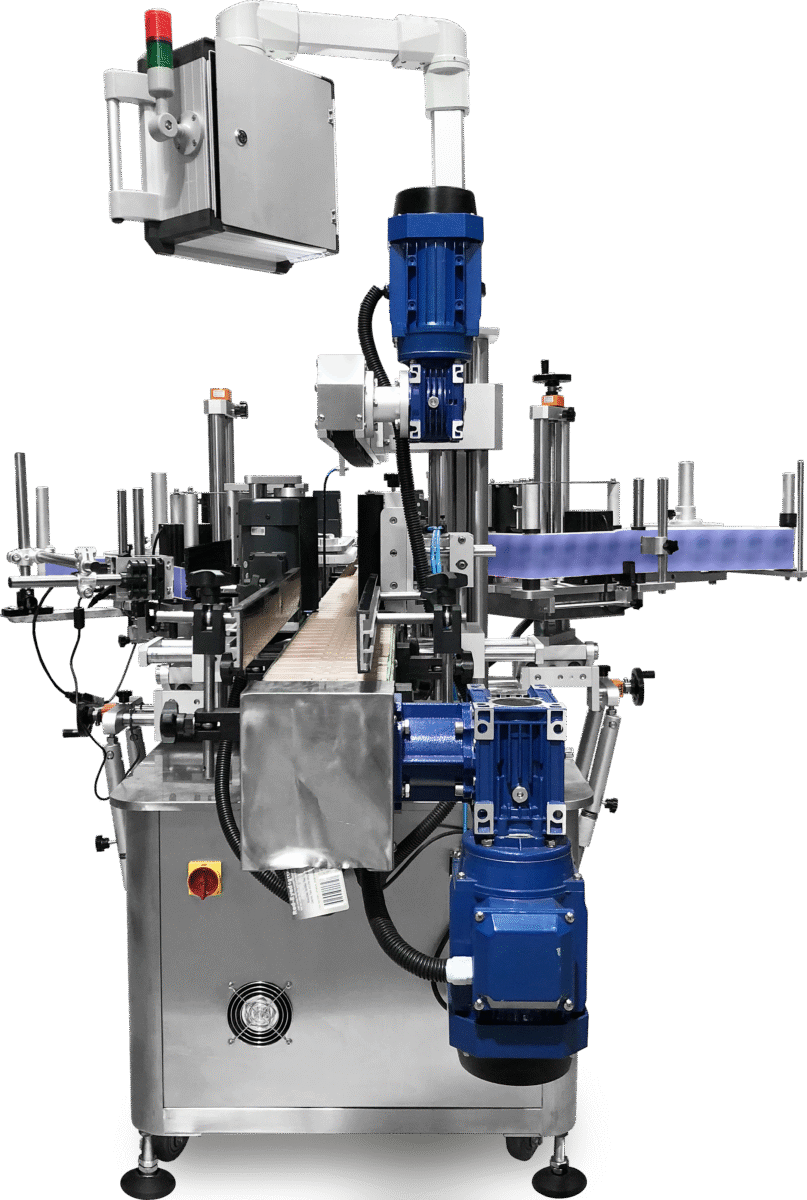

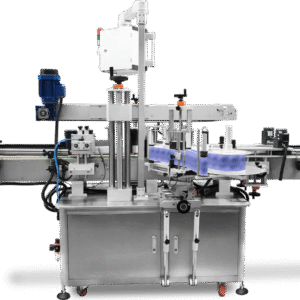

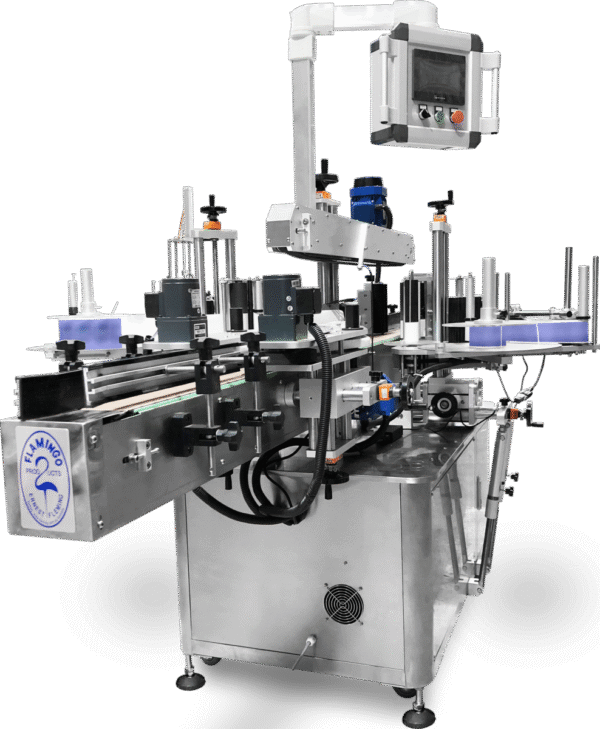

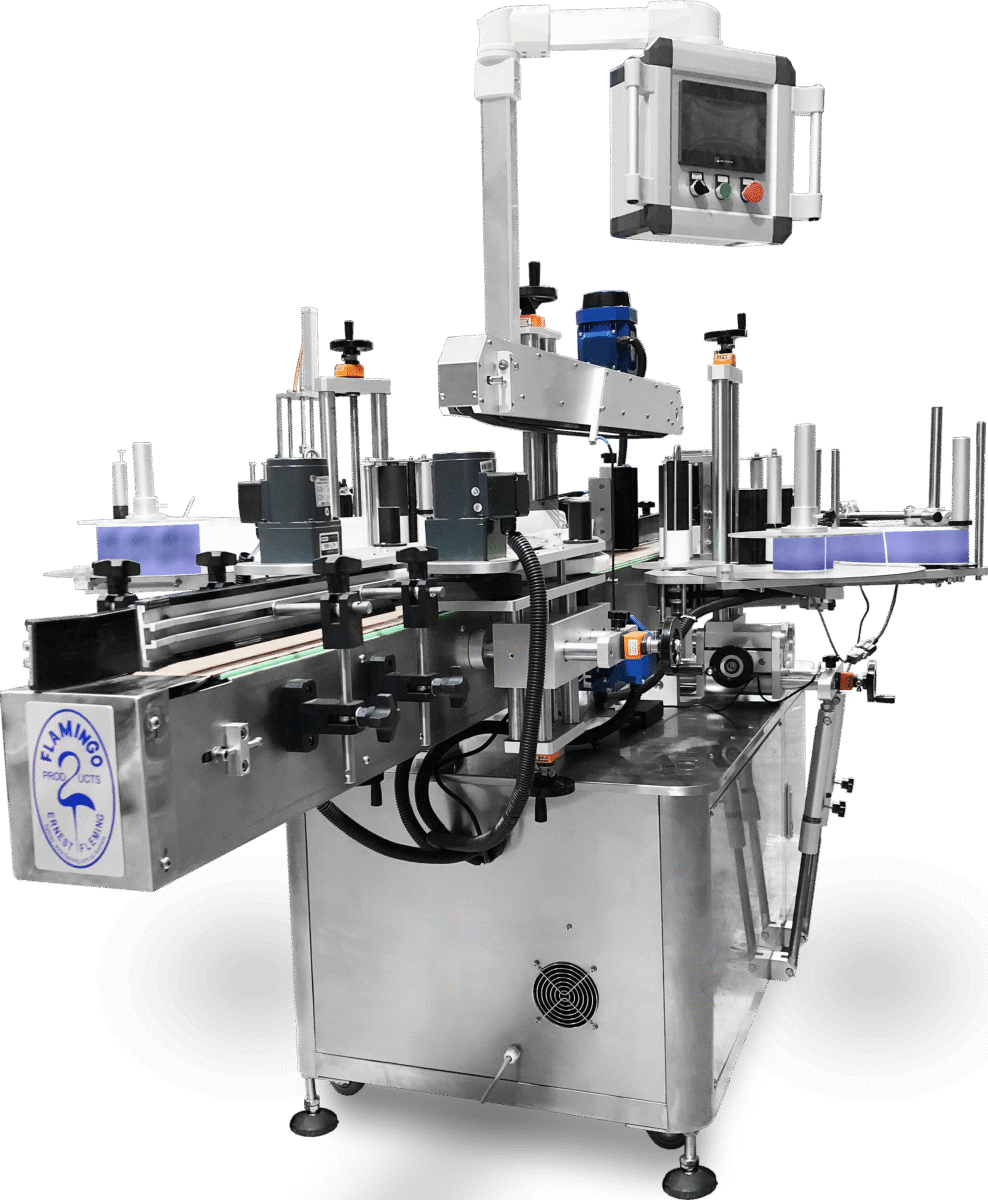

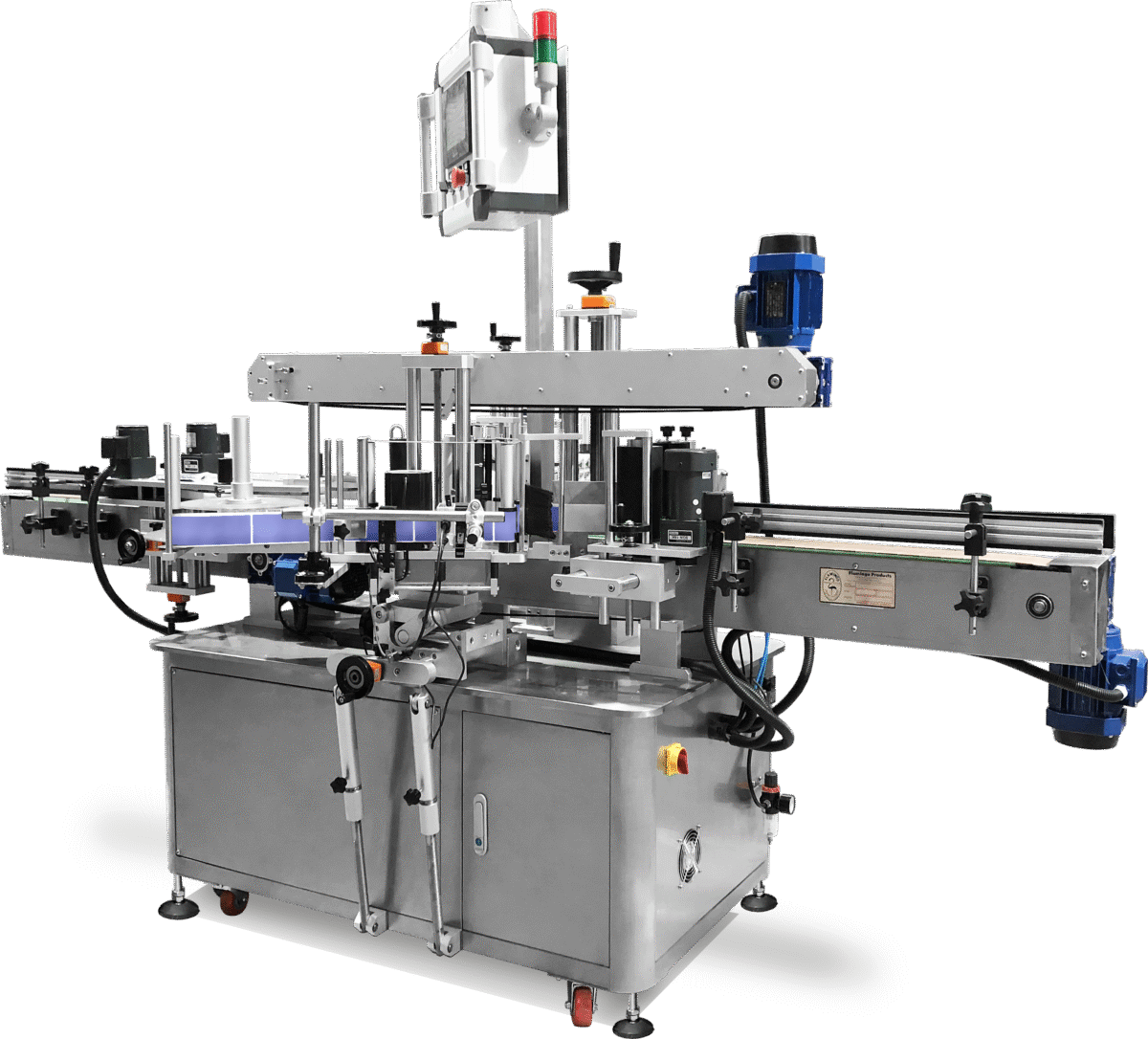

IJP-A600 Automatic Wrap-Around & Twin Head Labeller

Precision Labelling for Cylindrical & Flat-Sided Containers

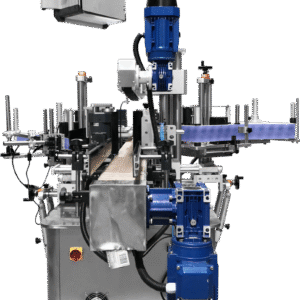

The Flamingo EFL-A600 is a fully automatic, dual-head labelling system engineered for high-accuracy application of pressure-sensitive labels onto round, square, or flat-sided containers. Featuring a robust stainless steel and anodised aluminium construction, this unit offers unparalleled flexibility—capable of full-wrap labelling, partial labelling, and dual-side labelling on a wide variety of container shapes and sizes.

Whether integrated into an existing line or used as a standalone system, the EFL-A600 provides a professional, repeatable labelling solution suited for food, cosmetic, pharmaceutical, and chemical packaging environments.

✅ Key Features & Benefits

Twin Label Heads + Wrap-Around Module
Capable of applying one or two labels on round, square, or flat-sided bottles. Ideal for wrap-around and dual-side label applications.
Servo-Driven Labelling Head
Ensures accurate and consistent label placement for a professional finish.
Quick Changeover & User-Friendly Controls
Tool-free adjustment and easy-to-use touchscreen HMI allow for fast setup and product changeover.
Versatile Label Handling
Applies transparent (clear) or paper plain self-adhesive labels. Accommodates label lengths from 10–120 mm and heights from 15–200 mm.
Integrated Conveyor System
2.4-meter conveyor with rust-proof plastic flat-top chain and adjustable guide rails for stable product transport.
Optical Sensors for Label Detection
Dual KEYENCE optical sensors for opaque and printed labels.
Intelligent Control System
Built-in MITSUBISHI PLC with Kinco stepper motor & drive ensures reliable, programmable performance.
Pre-Saved Programs
Store and recall up to 10 labelling programs for quick recall during repeat production runs.
Status Indicators & Safety Features
Dual-colour light signal tower provides real-time visual feedback for machine status.

📐 Technical Specifications

Specification	Value
Production Speed	Up To 30-50 bottles/min (approx. Depending On application)
Input Voltage	240V / 50–60Hz
Label Dimensions	15–200mm (H), 10–120mm (L)
Label Apply Type	Partial Wrap / Full Wrap / Twin Side
Label Type	Transparent or Paper (self-adhesive)
Pre-Saved Programs	5–10
Machine Dimensions (W×H×L)	1200mm × 1800mm × 2000mm
Machine Weight	160kg
Air Requirement	6–8 bar

⚙️ Applications

Food & Beverage Bottles
Cosmetics (e.g., lotion or shampoo bottles)
Chemical Containers
Nutraceutical Packaging
Glass, PET, HDPE, and Composite Bottles

🛠️ Customization Options Available

Flamingo also offers custom-built labelling solutions tailored to specific container shapes, label styles, or speed requirements. Specialized tooling, additional label heads, or customized wrap modules can be integrated on request.

The EFL-A600 Twin Head Labeller is a compact yet powerful labelling solution that combines flexibility, ease of use, and high-end control technology—perfect for growing or established production environments requiring multi-format labelling capability.
